OSV PLUG VALVE
TEFLON SLEEVED PLUG VALVES

TEFLON SLEEVED PLUG VALVES

Non-Lubricated Type
Jacket Type- Partial Jacket, Full Jacket
Material- Body, Plug WCB, LCB, 304, 304L, 316, 316L, A20, CD4M, HB, HC, MO, INCONEL, TI, ZR
Sleeve Material- PTFE, RTFE(GLASS, BRASS, GRAPHITE), TFM
Jacket- Carbon Steel, Stainless Steel
Size- 1/2"~ 24"
Use Temperature-50°C ~230°C

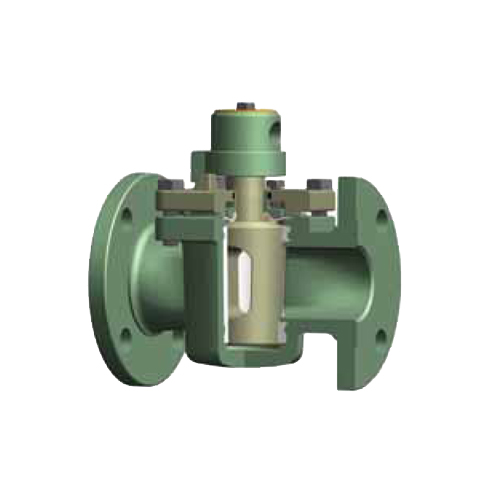

SLEEVED PLUG VALVES

SLEEVED PLUG VALVES

Non-Lubricated Type
Material- Body, Plug WCB, LCB, 304, 304L, 316, 316L, A20, CD4M, HB, HC, MO, INCONEL, TI, ZR
Sleeve Material- PTFE, RTFE(GLASS, BRASS, GRAPHITE), TFM
Size- 1/2"~ 24"
Use Temperature-50°C ~230°C
Main Fluid- Toxic, Flammable, Explosive Fluid Line and No-leakage required Line

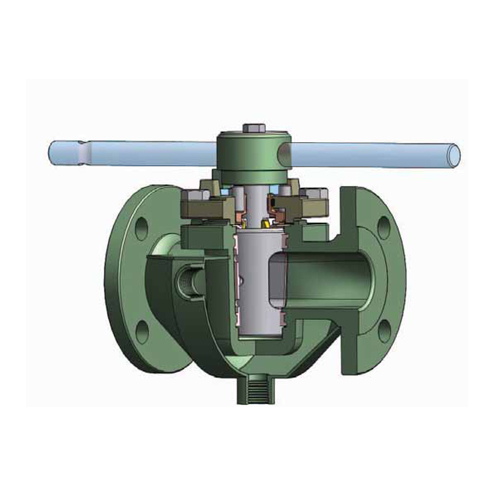

TEFLON SLEEVED JACKETED PLUG VALVES

TEFLON SLEEVED JACKETED PLUG VALVES

Non-Lubricated Type
Jacket Type - Partial Jacket, Full Jacket
Material- Body, Plug WCB, LCB, 304, 304L, 316, 316L, A20, CD4M, HB, HC, MO, INCONEL, TI, ZR
Sleeve Material- PTFE, RTFE(GLASS, BRASS, GRAPHITE), TFM
Jacket- Carbon Steel, Stainless Steel
Size- 1/2"~ 24"
Use Temperature-50°C ~230°C

METAL SEATED PLUG VALVES

METAL SEATED PLUG VALVES

Non-Lubricated Lift & Turn Type
Type- Standard Bore
Material- Body, Plug: 304, 304L, 316, 316L, A20, CD4M, MONEL
Size 1/2"~ 12"
CLASS
ANSI #150, #300, #600
JIS 10k, 20K, 40K
Temperature below -50°C, 300°C ~ 700°C
End Connection SCR(PT, NPT), BW, SW, FF, RF, LMF, T&G
Use High and Low temperatures like PA, RFCC, Heat Medium, Tar, LPG or the place which needs Zero Leakage, Zero Maintenance either Fire Safe function required Process.

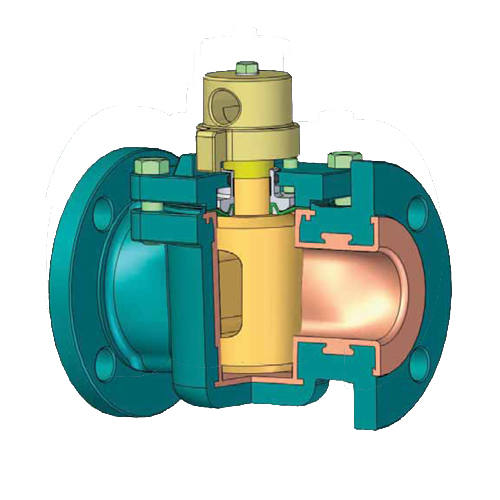

TEFLON LINED PLUG VALVES

TEFLON LINED PLUG VALVES

Non-Lubricated Type
Material
- Body, Plug: ASTM A216 WCB, ASTM A351 CF8M, CF3M, ETC
- LINING MATL: PFASize1/2"~ 18"
Use Temperature-50°C ~ 230°C
Main Fluid: Acidic or Alkalic fluid line specially required for No-leakage.

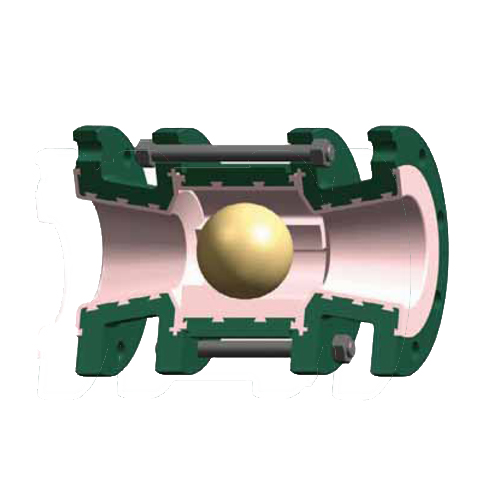

TEFLON LINED BALL CHECK VALVES

TEFLON LINED BALL CHECK VALVES

Non-Lubricated Type
Structure
The whole body of the valve has PFA & FEP Teflon linings. RTFE ball moves freely on the Spacer where the lining has been done with Teflon materials and the ball stops in the double sided flange passageway. The pressure of the material of the counter flow moves the ball upstream stopping the flow. The spacer of the downstream is in development to ensure there is a free flow.
Places of use and function
1) Prevent harm done on the pump motor by counter flow
2) Prevent harm done on the pump impeller by the counter flow
3) Interception when the back-head is high

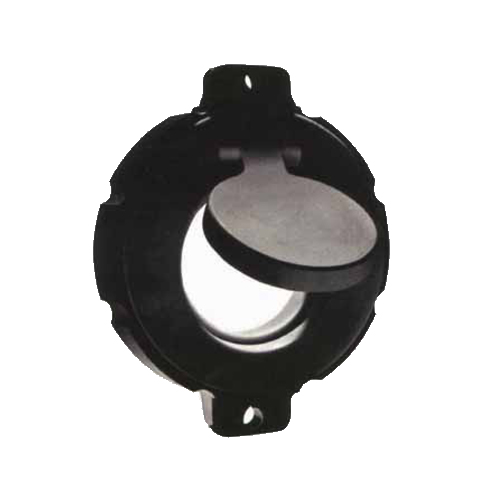

TEFLON LINED SWING CHECK VALVES

TEFLON LINED SWING CHECK VALVES

Non-Lubricated Type
Structure
Teflon Lined Swing Check Valve is composed of the Body and 2 Discs all of which come in contact with the flowing bodies. The areas of contact have Teflon lining making the product applicable to places where an anti-corrosive characteristic is needed instead of high steel alloy valves. The disc with an attached hinge between the valve's body and the flange moves to stop or allow the flow.
Places of use and function
1) Prevention of the counter rotation of the Pump Motor
2) Shock prevention of the Pump
3) Shut-off function when the back head is high

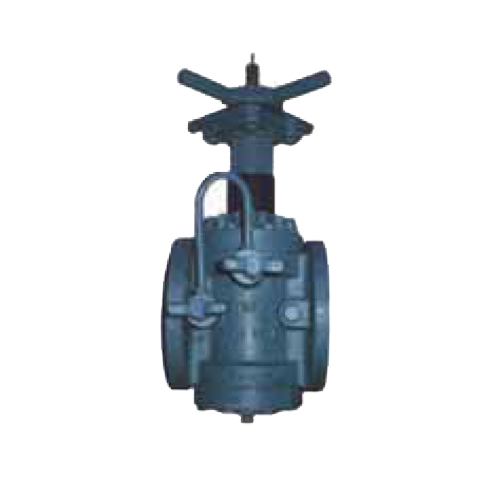

DOUBLE BLOCK & BLEED PLUG VALVES

DOUBLE BLOCK & BLEED PLUG VALVES

Non-Lubricated Type
Structure
This system is designed to relieve excess pressure rise in the body cavity of a closed valve due to the ambient temperature causing expansion of the liquid in the valve. The relief valve is set to open at 25 PSI on all valves, regardless of their working pressure. With the Double Seal valve closed, the relief valve will open at 25 PSI above upstream pressure. This system functions only when the Double Seal valve is closed and the isolation valve is open.

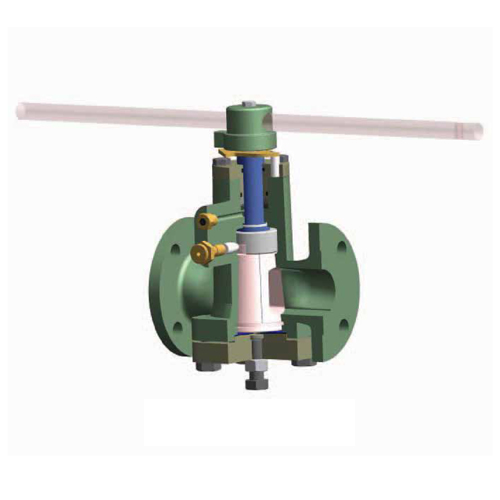

METAL TYPE PRESSURE BALANCED PLUG VALVES

METAL TYPE PRESSURE BALANCED PLUG VALVES

Lubricated Type
CLASS- ANSI 150#, 300#, 600#, 900#, 1500#
Size- 1/2"~ 24"
